EZEBEND™ Tube Bender


     Pictured above are some of our more popular models. Follow the links on the picture or through the labeled buttons for additional information. If you do not see the machine you have or are looking for, please give us a call at: 800-873-0891 and we will be happy to help.

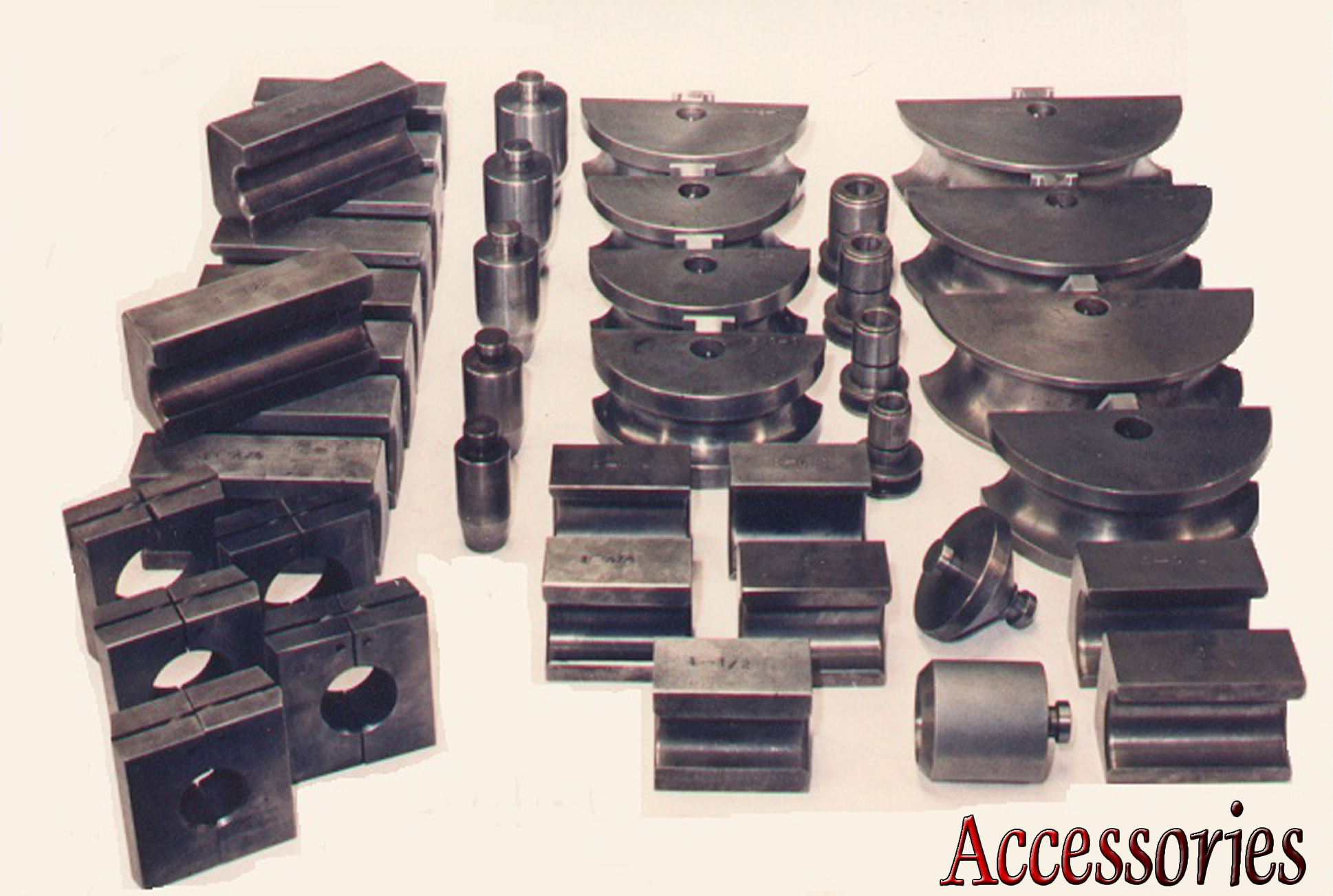

    EZEBEND™ Tube Benders are the product of years of continuous research, development and ongoing product improvement. From our standard ½” thick steel wall, heavy-duty main beam, standard five horsepower (5 hp) motor and standard hardened steel forming dies, these benders last for years and will hold up to even the most rigorous use. EZEBEND™ Tube Benders are manufactured using quality materials and components, they are equipped with rugged, quick to interchange, precision tooling and are designed for day-to-day production in your shop. You are not limited with what you can bend with these benders; we offer a variety of different types of die sets to bend all kinds of tubing: round, square and rectangular.

    EZEBEND™ Tube Benders can perform two functions, they can bend tubing up to 180°* and when equipped, they expand and finish the ends of the exhaust pipe for quick fits and installations. Tube bending and tube forming are done with powerful hydraulic cylinders using either a ram die with a pair of back shoes, or by using a variety of the available shapes and sizes of expanding, reducing or forming dies.

Models

Description

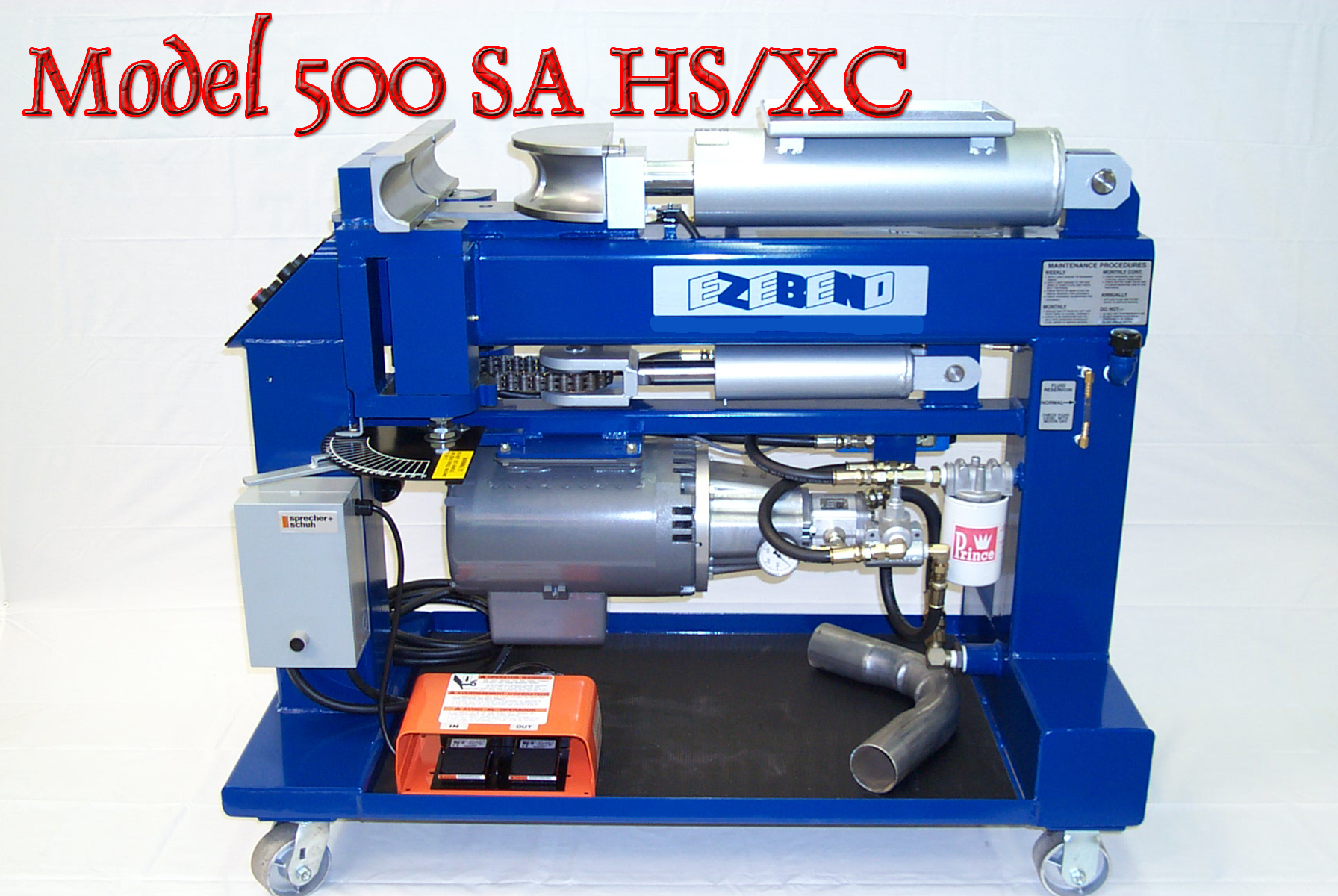

500 SA   or
500 SA HS/XC

This is a full-size, bend only, tube bender without end forming. The Semi-Automatic (500 SA) operation comes with a standard, single phase, 208-230 V AC, 5.0 hp motor and is set-up for 125/250 V AC input power supply. This unit is equipped with remote electric foot pedals for easier operation. This unit is also available in an optional High Speed/Extra Capacity Bender with a 7.5 hp motor (500 SA HS/XC). The 500 SA HS/XC's more powerful motor allows for easier bending of heavy wall (thicker) round, square and rectangular tube.

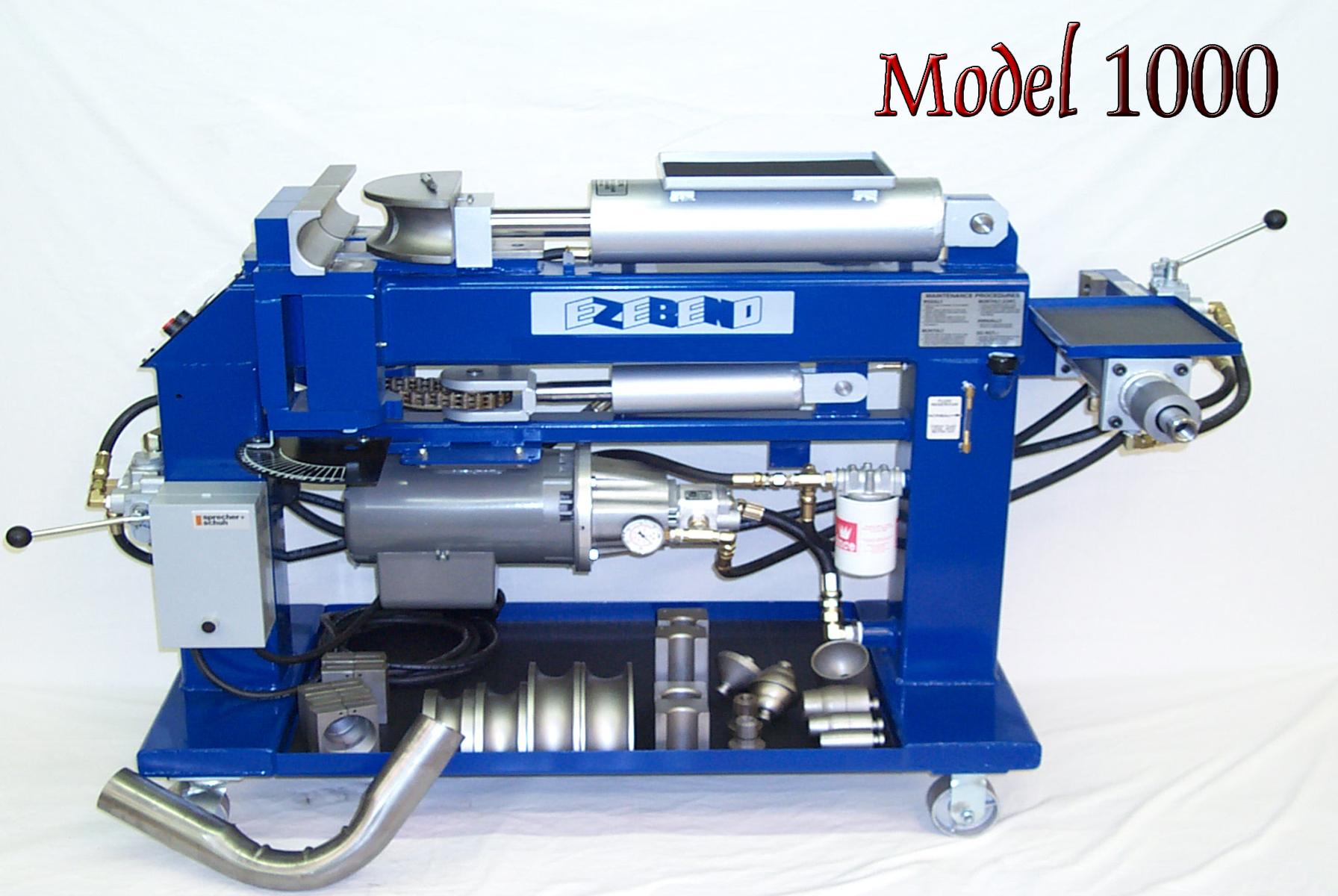

1000

Full-size, standard manual tube bender with knee control operation and a manual double ended Expander / Swage. ☺

2000

Manual tube bender with manual foot pedal control operation and manual double ended Expander / Swage. ☺

3000

Manual tube bender with knee control operation and manual, independently operated Expander and Swage. ☺

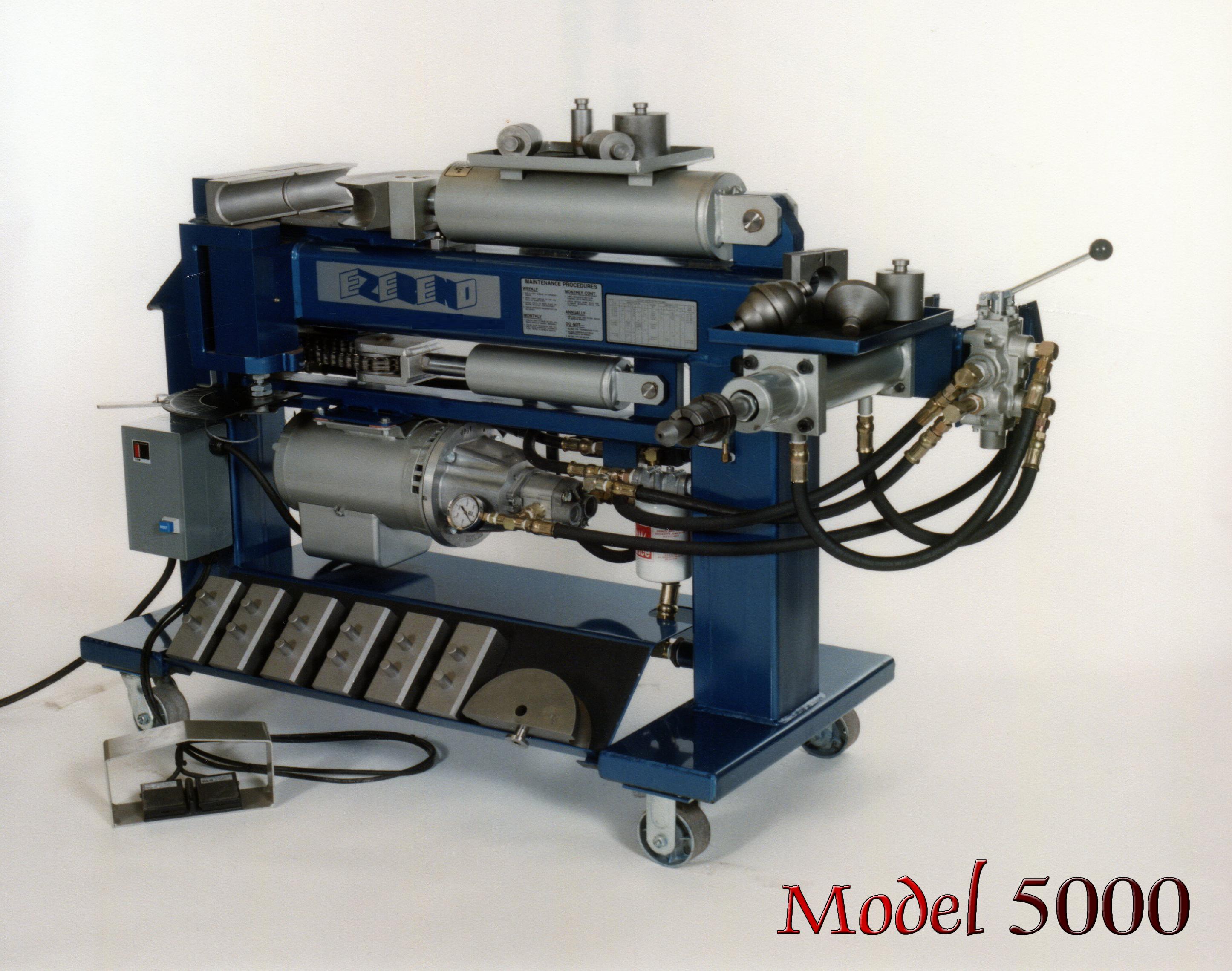

5000   or
 5000 HS/XC

Semi-Automatic bending along with standard remote electric foot pedals and a manually operated double ended Expander / Swage. This unit is a Semi-Automatic (Model 5000) model on the bending side only and is equipped with a standard, single phase, 208-230 V AC, 5.0 hp motor, and set-up for 125/250 V AC input power supply. This unit is available in an optional High Speed/Extra Capacity version (5000 HS/XC), which is equipped with a 7.5 hp motor for easier bending of heavy wall (thicker) round, square and rectangular tube. ☺

6000

Semi-Automatic controls with remote electric foot pedals and independently operated Expander and Swage .☺

    Do you have a broken bender or bender in need of repair, we have replacement parts that are available to get you back into business.
     Do not know the name of the part? Describe it to us and if it is not exactly what you needed, you can return it and we will refund you money.
 Call us at: 800-873-0891
    Additional options and models are available. Some models are available with and optional 7.5 hp motor for quicker bending of heavy gauge material.
☺ Standard Muffler Man Package is included.
 *Special dies are required. Typical maximum bending angle is between 130° and 160°.
